TNC Lathe restoration progress

by John

The before picture.

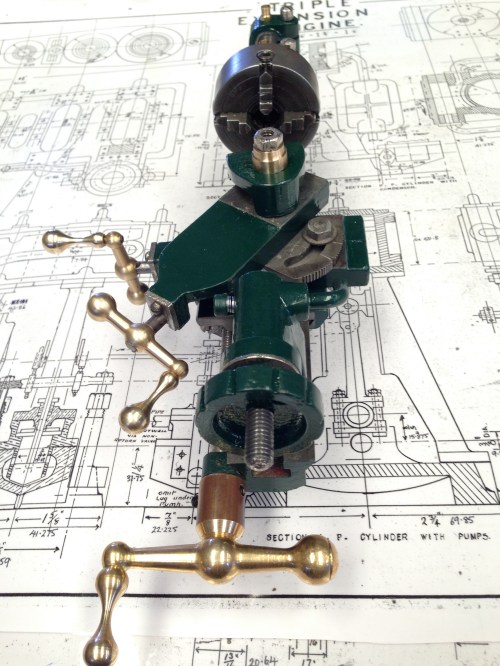

Current . After cleaning, holes filled, painting, new handles, new spindle shaft, new oil reservoirs, chuck refurbished, some parts nickel plated, new base. Gibs resurfaced. It all moves smoothly, with minimal backlash.

Mounted on an aluminium base. Ready for its new motor with foot operated speed control and headstock pulley to be turned. I installed a thrust bearing between the chuck and headstock.
