TNC lathe restoration completed.

by John

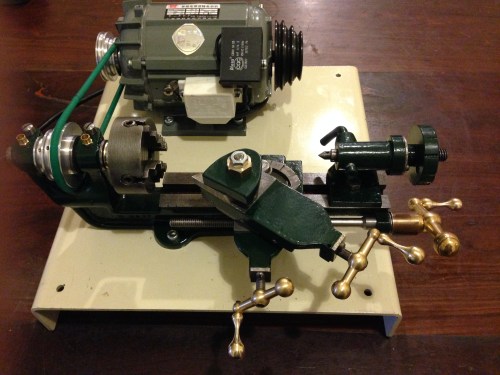

Miniature lathe mounted on an aluminium base, and hooked up to a new, variable speed motor. The pulleys were turned from aluminium.  The motor is controlled with a foot switch.


Headstock detail, showing the thrust bearing between the chuck and headstock, oil wells, pulleys and belt. I expect that an ER16 collet chuck will be used more often than the 4 jaw chuck.
