CON RODS FOR TRIPLE

by John

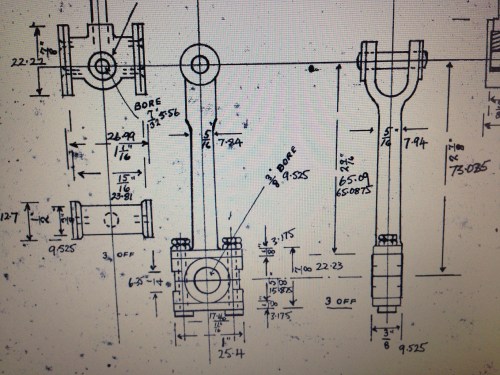

There are three connecting rods, and despite the different cylinder sizes, the 3 rods are identical. Due to the fact that the stroke for each cylinder is identical. It is only the bore which differs.

The castings for the con rods did not permit them to be held in a lathe chuck, even an independant 4 jaw. So I drilled centres, and held them between centres for turning the shafts.

IMG_2669

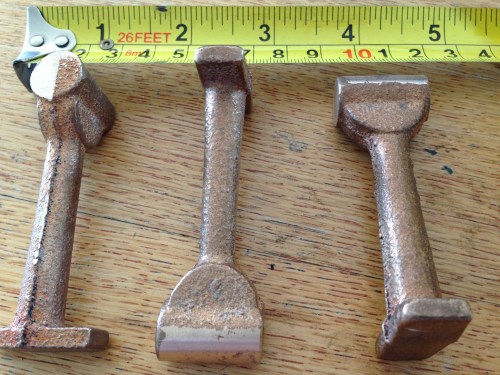

The con rod castings, after the initial tidy up on the belt and disk sander.

The con rod castings, after the initial tidy up on the belt and disk sander.

IMG_2670

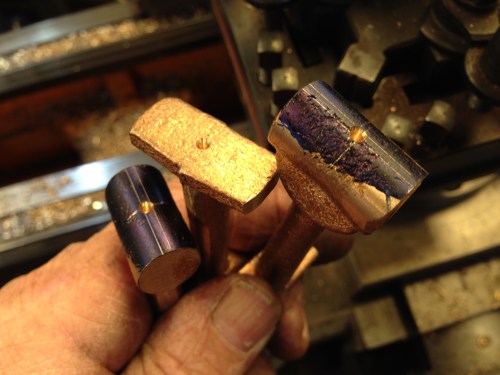

The drilled centres, and rather rough centre lines.
