Stephenson’s Link Yokes

by John

Several more sessions in the workshop, and the yokes for the Stephenson’s links have taken shape.

The following photos detail the steps.

IMG_3042

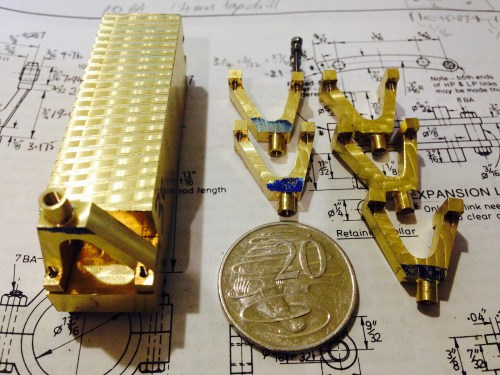

The finished yokes. 6 of them, each about the size of thumbnail. The time taken to make these tiny parts is not related to their size, except that the small size and delicate strength made the task more difficult. The time taken depends more on the number of setups and the number of machining processes. In this case, it took about 4-5 workshop sessions.



IMG_3036

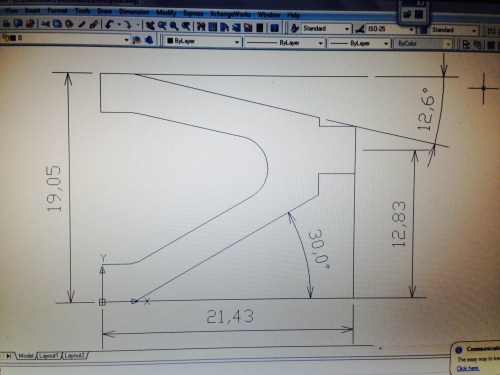

Drawing of the yoke, to measure the angles.

IMG_3035

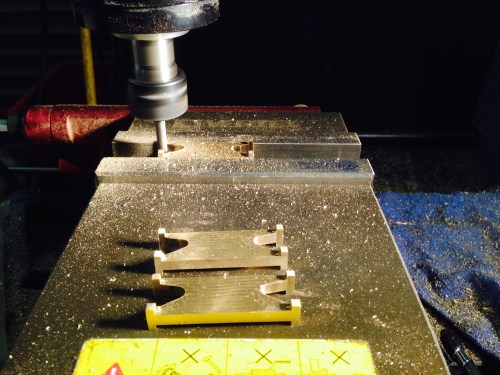

CNCing the end curves, 6mm end mill, 1mm cuts, 12000rpm, 600mm/min.

Marking out the angle cuts. These are straight cuts, in a different clamping position, so it was quicker to do them manually.

Marking out the angle cuts.

IMG_3038

Milling the angles (not CNC)

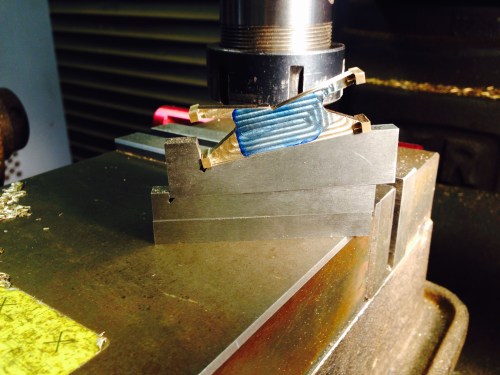

Using angle plates to get as close to 12.6 degrees as possible. I used a 10, a 2, and a 1/2 degree plate to end up with 12.5 degrees. Close enough.

Using angle plates to get as close to 12.6 degrees as possible. I used a 10, a 2, and a 1/2 degree plate to end up with 12.5 degrees. Close enough.   The other side was 30 deg, easy with one angle plate.
