Stephenson’s Link Rods
The rods for the Stephenson’s links have been turned, threaded, silver soldered to flanges, and bolted to the eccentrics. Still more to go. A lot of time and effort for such small parts!
3 pairs of yokes and eccentric rods, threaded, ready for silver soldering.

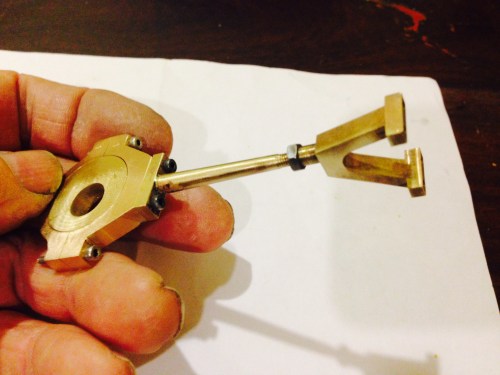

The eccentric, rod and yoke, all joined.

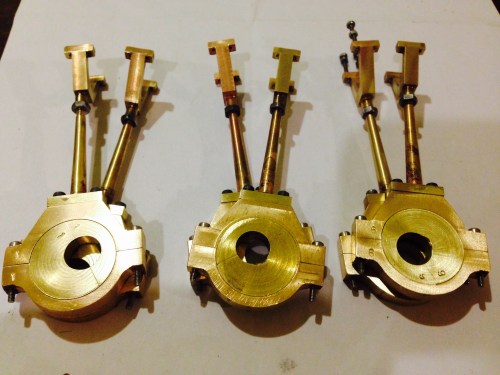

3 pairs of eccentrics and rods, one pair for each cylinder. 7 machined parts each, so far….
