October 12, 2019

Workshop with security

Every time that I open my workshop I wonder if it will have been robbed.  So far, I have had unsecured implements which are stored outside, stolen, and an attempt at stealing my Landcruiser ute, but no breaking and entering of the workshop itself.  Mind you, any thief would have a tough time working out what to take…   everything is scattered around, sitting where I last used it.  And then there are the tiger snakes….

Reader Brendan has a couple of guard dogs for his workshop when he is not present.

Brendan guard dogs.jpg

They might not look too scary, but they do make a hell of a racket when a stranger approaches.

And Brendan’s workshop is not all in one location.  I counted 5 separate locations….

Brendan office.jpg

The computer room and security monitor.  Mostly CAD and G codes here.

Brendan laser cutter.jpg

The laser cutter occupies the entry porch.   See the backing board pattern?  That is from the gasket for my Trevithick engine.

Brendan bench.jpg

Then the main workshop.  Hmm… what is that red thing?

Brendan bearing press

Brendan lathes.jpg

2 lathes in the garage.  Hafco with DRO, and CNC with Siemens controller.

Meanwhile, in my workshop…

I am taking some of my stuff to an exhibition at the Royal Geelong Show in a week.  The beam engine working on steam always gets some interest.   And the Trevithick dredger engine has not featured at this event before, so that can go.   I am currently working on the vertical boiler.   The Southworth Duplex pump which is attached to the boiler, was working on air, but it refused on steam, so another tear down is due.  If I can get it going that will be the third entry.  If not, well, there is always next year.   Fortunately Keith Appleton recently produced some videos on the Southworths, one of which had a similar problem, so I think that I know where my problem is.

Incidentally,  I showed the beam engine, the Trevithick, and the boiler at an exhibition in Melbourne last weekend.   Mostly well received.  But I had a succession of people who said of the beam engine “very nice.  Except for the cap screws.”  When it reached 6 separate commenters on the same theme I was starting to suspect a conspiracy from these rivet counters.   Yes it does have cap screws as the main fasteners.  And no, they are not true to the period (late 19th century).  But I quite liked the look of them.  But, one does prefer approval in preference to criticism, and after this concerted barrage of criticism, I relented, and spent a couple of workshop sessions swapping out the cap screws for studs with hex nuts.

IMG_3167

The before.  With cap screws.


After the upgrade with studs and hex nuts.  Was it worth the 2 workshop sessions?

Sometime soon I will paint parts of this engine, and apply wooden lagging to the cylinder.





6 Comments
December 23, 2015

Milling a taper in thin steel

I was reading an article published by The Home Shop Machinist today, and I was very surprised to see my name as the author.

I had submitted it to HSM several  years ago, and had totally forgotten about it.

I had to read the article to remind myself how I achieved this neat little trick, of machining an exact 1.5 degree taper in a very thin workpiece.

Click on the link below to see the short article.



Milling a Taper in Thin Steel

Leave a comment
October 24, 2015

Prize Winning Hit and Miss Engine

This Hit and miss engine by Stuart won first prize at the Royal Geelong Show Model Engineering section.

Second prize to yours truly.

Model Bolton Beam Engine.

Model Bolton Beam Engine.

4 Comments
October 15, 2015

Beam Engine, First Run on Live Steam

My Bolton 12 Beam engine is being exhibited at The Geelong Show in the next few days, along with other model engines from The Geelong Society of Experimental and Model Engineers (GSMEE), and many other full size antique engines.

I am particularly excited by this event, because it is an opportunity to run my beam engine for the first time on live steam.  Plus it is a really great event generally, (see blog from this time in 2014).

We set up our model engines today, in preparation.

The video below, is of my beam engine’s first run on steam.  The Vintage Machinery Society has a full size boiler to run a full size marine triple expansion marine engine, and many other steam engines, including the models in our “cage”.

IMG_3246

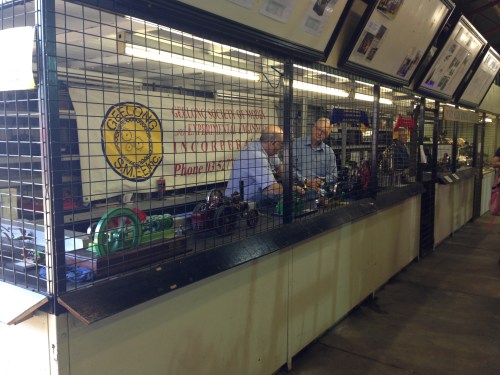

The Cage in the Vintage Machinery Shed.  Not sure whether it is to keep the hordes out or the old blokes in.  (Actually, the machines become very hot when running on steam, so the cage is to keep small hands out).

The steam is at 25-30psi.  Enough to turn over the engines, which are just ticking over, not under working loads.

Click on the arrow in the video box, to see the video.

2 Comments
October 7, 2015

Making Small Gaskets

My Bolton 12 Beam Engine is a steam engine, but to date, has run only on compressed air.

Compressed air, is invisible. Any leaks, might make some noise, and show up as a dirty oil leak, but are not visible to a casual observer.

In contrast, steam shows up every leak.

Our club is having its annual exhibition at The Geelong Show, in 2 weeks.  (See the post from 12 months ago about The Geelong Show)

Steam is available so I have decided to show my Bolton 12 beam engine, and to have it running on steam.

That has required making a steam connection and removing the compressed air connector, And more importantly, making every joint in the steam-air line,  steam proof.

So every join has been opened and a gasket inserted.  Some of the gaskets are oiled brown paper, and some are more permanent “liquid” gaskets.

Making the gaskets was a new and interesting experience, so I decided to make a photographic record.

I made the gaskets from brown paper.

I required 6 of these small gaskets, and 2 larger ones.

IMG_3158

More components ready to have gaskets installed

IMG_3159

Step 1. Make an impression of the surface in the paper using finger pressure.  Do not allow the paper to move.

IMG_3160

Step 2.  Continuing to hold the paper securely, locate the bolt and steam holes using a pin.

IMG_3161

Step 3. Using an old centre drill, enlarge the pin holes. Rotate the centre drill anticlockwise to avoid tearing the paper. Push the the drill firmly while rotating it, and continue to hold the paper firmly against the surface.

IMG_3164

Step 4. Use the fine scissors to remove the dags. A delicate touch is required.  Use the ordinary scissors to cut the outline.

IMG_3165

It looks like it should do the job.


IMG_3167

The reassembled beam engine.  The displacement oiler, and rope driving pulley have been added since the last photos were posted.

Amazingly,  after reassembly, I had no left over bits.  If it works on steam as planned, I will post a video.  Watch this space.

6 Comments
July 7, 2015

MODEL ENGINEERING EXHIBITION at BENDIGO, VICTORIA, AUSTRALIA

Bendigo is a beautiful city in the middle of Victoria, with a rich history, literally!

The city is in the “golden triangle” of Victoria, named for the huge quantities of gold which were mined from the area in the second half of the nineteenth century.

With that mining-engineering background, it is not too surprising that Bendigo has an enthusiastic and active metalworking, engineering, modelling club, and every two years they host an exhibition, which I attended for the first time last weekend.  And what a terrific event it was.   Well worth the 3 hours each way drive.

Following are some photos of a few of the hundreds of exhibits.  Please forgive me if I don’t remember some of the names and details.  The standard of the work varied from excellent to absolutely bloody unbelievable.

Welcoming visitors at the entrance, was Gerard Dean, with his 1/5 scale Tiger tank, powered by a V12 150cc engine.  Belching smoke, and overcoming any obstacles and visitors in its way.  There are a few of these models around the world, but very very few have a 12 cylinder gasoline engine which looks and sounds the part.  Gerard has taken his model to many countries, including the USA.  He does occasionally strike a hitch at customs, and usually has to prove that it will not fire real ammunition. The country which gave him the hardest time getting it over the border??  You guessed it…   Germany.

IMG_2904

The Germans were a bit upset that the engine valve covers are stamped “Made in Australia”.

IMG_2902 IMG_2903

IMG_2914

Inside, there were 2 large rooms, with models, tools, books, kindred spirits who were delighted to have a chat.

Inside, there were 2 large rooms, with models, tools, books, kindred spirits who were delighted to have a chat.  I recognise the beam engine and quorn T&C grinder in the foreground.

Eccentric Engineering had a display of his Diamond Tool holder, but I have already bought 6-7 of these in different sizes. I did top up my stock of Crobalt cutters.

Eccentric Engineering had a display of his Diamond Tool holder, but I have already bought 6-7 of these in different sizes. I did top up my stock of Crobalt cutters.

IMG_2911

Eccentric Engineering was showing his Acute Tool Sharpening System. I was very tempted to buy his kit of parts, but was fearful of my reception from SWMBO, if I returned with yet another tool and cutter grinder.

A very impressive Atkinson engine. it was running earlier. Les are you there?

A very impressive Atkinson engine. it was running earlier. Les are you there?

The Eccentric T&C cutter grinder kit.

Of the many outstanding models, this one was superb. Not totally finished. But totally appropriate for Bendigo. Of the many superb models on display, this one was outstanding. And totally appropriate for Bendigo, given its mining heritage.

IMG_2925

Pictured with the maker. The twin double acting steam engines were running on compressed air for the exhibition. Will look great running on steam!

IMG_2921 IMG_2922 IMG_2923 IMG_2924

Some future model engineers, viewing a very nice, running, triple expansion steam engine.

Some future model engineers, viewing a very nice, running, triple expansion steam engine.

IMG_2931 IMG_2932

A beautifully finished Bolton 12 beam engine

A beautifully finished Bolton 12 beam engine.  Makes mine look a bit drab.

10 cylinder radial aero engine, made from stainless steel.

10 cylinder radial aero engine, made from stainless steel by Bob Bryant.  Hmm, maybe a 9 cylinder.



I particularly likes this working Meccano model of an excavator. The digging action was particularly realistic.

I particularly likes this working Meccano model of an excavator. The digging action was particularly realistic.

Another beam engine, this one made using Meccano. Takes me back 55 years!

Another beam engine, this one made using Meccano. Takes me back 55 years!

IMG_2927

A particularly beautifully finished oscillating engine, totally made from bar stock.

IMG_2928

4 Comments
March 19, 2015

Bolton 12 Beam Engine Under Steam

A YouTube video of a Bolton 12 running under steam.  Not mine, (the workshop is much too tidy) but definitely inspires me to hook mine up to a boiler.

Leave a comment
March 18, 2014

SUCCESS! BEAM ENGINE RUNS (BRIEFLY) ON COMPRESSED AIR

After the piston detachment episode, I did not hurry back to the beam engine project.  I talked to some steam expert colleagues about my valve timing problem.  They suggested that my plans were drawn in “first projection” and that maybe I had interpreted them as “third projection”.  I think that means that I had assumed I was looking down from above, whereas some older plans are drawn as if looking up from below (or something like that).

If so, it might have meant that the piston and valve movements were way out of sync.

So, I removed the crankshaft and its key, and replaced the key with a grubscrew.  That allowed me to experiment with different positions of the crank on the mainshaft.  Eventually I obtained some purposeful movements, and I got so excited that I immediately made a video.  The video that follows is that video.  Way premature and I should not show this first very awkward effort, but here it is, warts and all.  Fortunately I ran out of compressed air before it became really embarassing.   When I do some fine tuning of the valve timing, and fix all of the leaks, and attach the governor connector shaft so the governor works, I will make a more professional video.  With a video camera on a tripod.
