Fowler R3 at The Geelong Show

by John

IMG_5788

I took my Fowler R3 3″ scale traction to the Geelong Show, and here it is on display.

The R3 is a bit of an uncommon traction engine, so I was rather surprised, delighted and awed to find a full size R3 on display also.  Of course I met with the owner and spent a lot of time talking to him and examining the real McCoy Fowler R3.  Apart from the size difference, the similarities were striking.  Even the colour scheme was similar.  And the full size machine was a heavy haulage model whereas mine is a road locomotive.

I found the numbers were interesting

weight     250kg/18tonnes

length 1.5m/ 6m

towable load 250kg/60 tonnes

cylinders 2/2

boiler pressure 100psi (copper)/180psi (riveted iron)

year of build 2016/1911



IMG_5739 2

Me, getting a driving lesson from the owner, Graeme Brown

IMG_5767

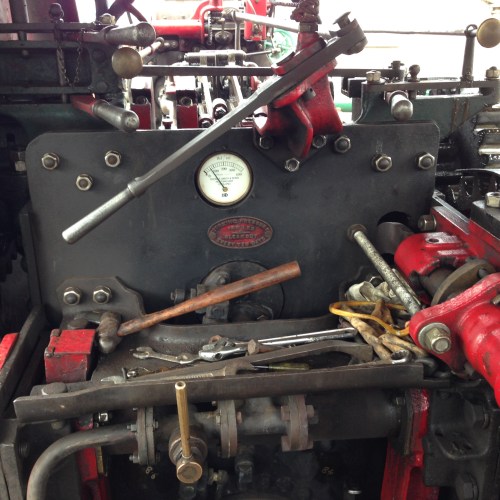

The firebox door, throttle, looking forward

IMG_5768

Winch


Forward/reverse lever


Water pump, crankshaft driven



crankshaft with its cluster of big ends and valve rod eccentrics.


Con rod big end hardware


Fire box door and water level sight glass

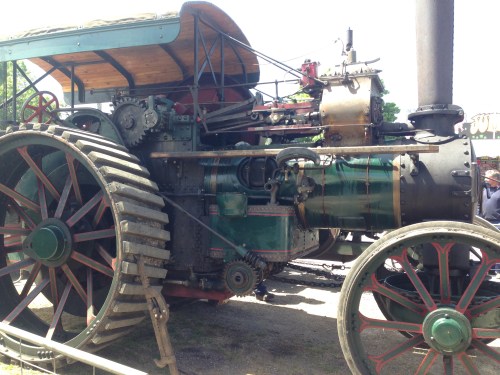

Fowler R3 heavy haulage engine.  spent most of its working life in and around Ballarat, Victoria, Australia

IMG_5787

IMG_5696

Rear wheel hub and winch

IMG_5690

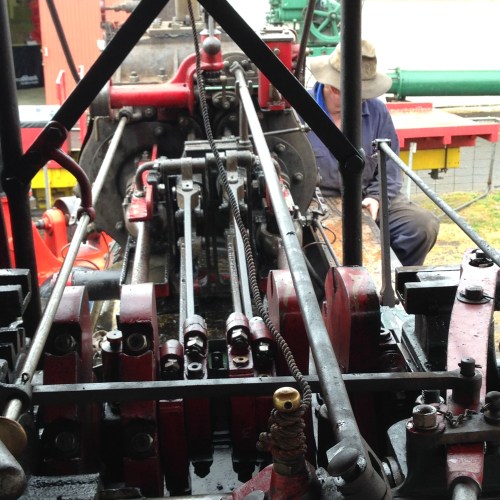

This could be a photo of my engine, but it is not

IMG_5691

IMG_5689

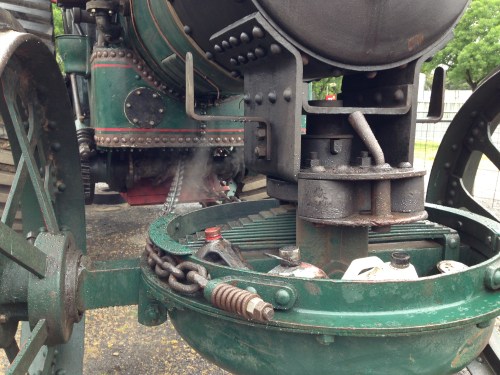

Lubricant and tool storage area.  Actually the front suspension and steering drum.  I imagine that the springs are to protect the  gear teeth.

IMG_5688

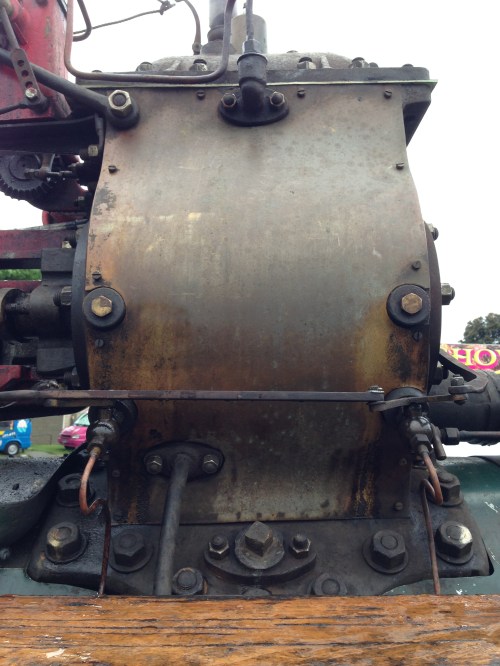

Not sure that the brass cylinder cover is kosher.

IMG_5687

The wheels hardly dented the grass during the grand parade.

IMG_5685

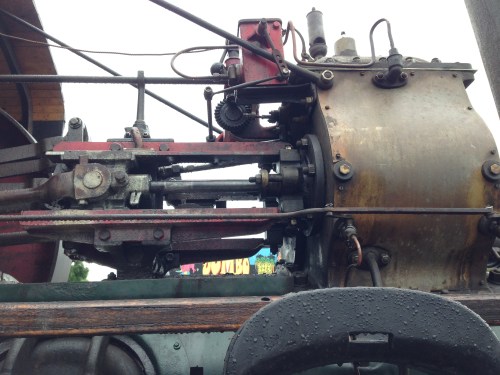

The engine mechanicals, oiler, whistle, and hose support.

IMG_5684

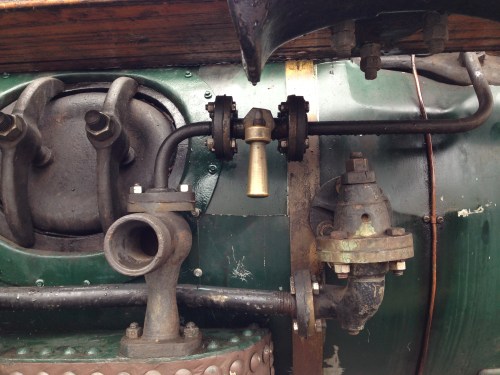

Boiler inspection hatch, and water intake.

IMG_5683

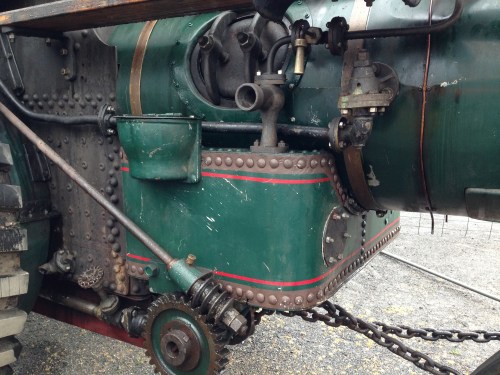

Belly tank, steering gear

IMG_5700

The engine could be used as a cathedral reliquary

And a series of non-edited videos, to recapture some magic moments.
