CNC Mill Upgrade – 6. Where to put the computer?
by John
Not much more to report today, but I have decided how to position the computer.
Not easy, because the computer needs to be protected from flying swarf and coolant spray from the CNC mill and the manual mill which is immediately adjacent. And I want the computer to be close to the machine. The CNC mill is NOT in an enclosure.
So this is what I have decided….

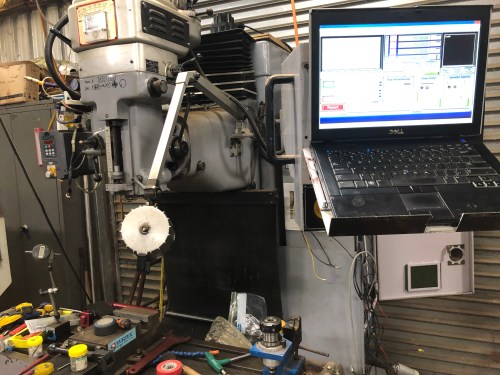

The laptop is just low enough to reach while standing. The E stop and other buttons are underneath.

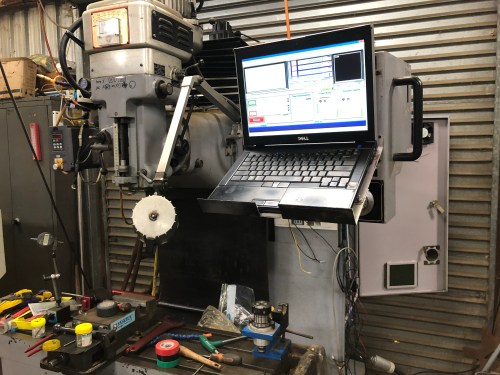

And if the swarf is really flying, I can turn the PC away…
Might need some adjustments. The laptop is an old Dell ATG. Said to be resistant to fluids and relatively resistant to shock/vibration etc. Military specs. I might add some side protection and perhaps a roof.
